• STAINLESS STEEL PRINTING MESH

  TIME:2021-03-19 CLICK:

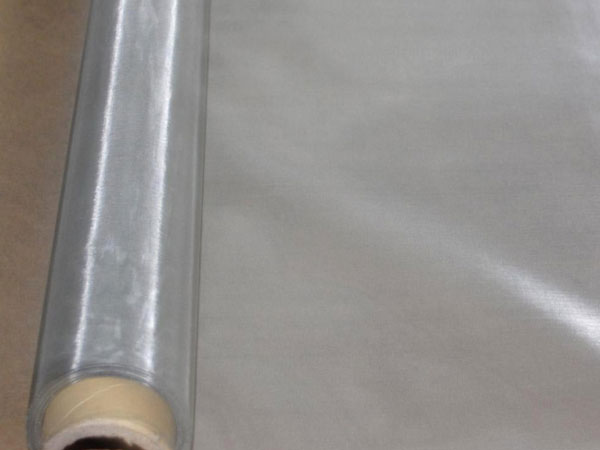

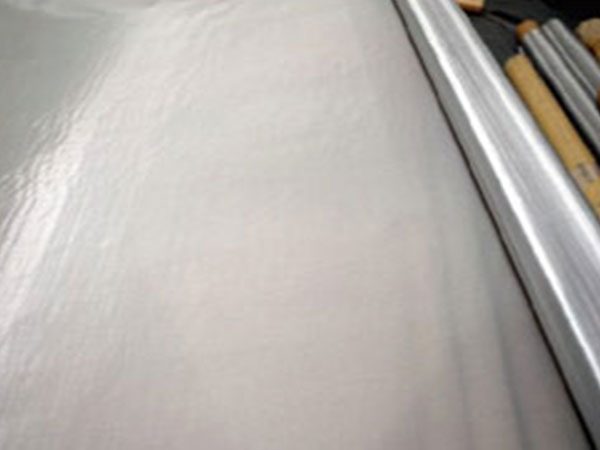

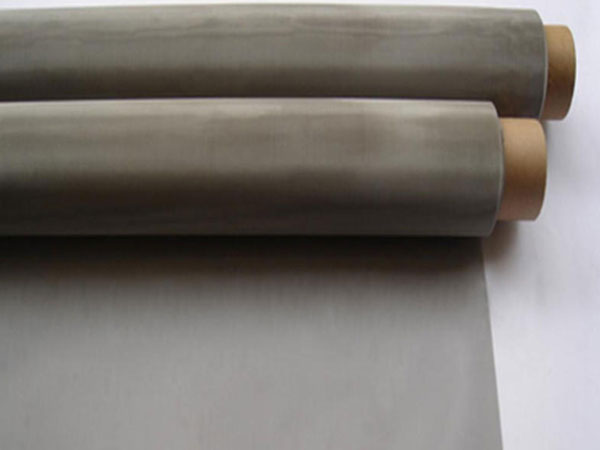

  Stainless steel printing screen is the name behind a comprehensive range of precision woven stainless steel meshes designed specifically for the screen printing industry. These precision products, many of which are produced on state of the art looms by skilled craftsmen, can meet even the most stringent demands of the electronics printing industry.
  Precision of woven stainless steel meshes for printing on glass &ceramics are as follows:Material:SUS304N,304HP,AISI316L
  Weave pattern: Plain weaving
  Width/Length: Widths held in stock include 1020mm (40"), 1220mm (48") und 1530mm (60)

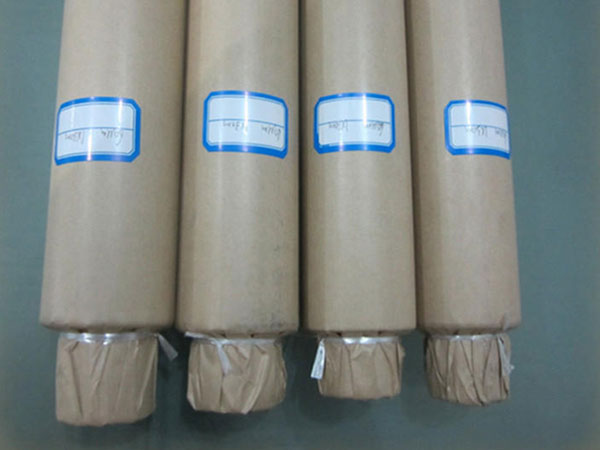

  Standard roll length:30.5m ( 100 ft )









  Specification	Mesh Count (Mesh/inch)	Wire Diameter（µm）	Open area Ratio (%)	Aperture （µm）	Thickness  （µm）	Calendered Thickness (µm)	Theoretical Ink (cm3/m2)
  40x40x160	40	160	56.0	475	300--320	As order	179.1
  60x60x120	60	120	51.3	303	230--245	As order	123.2
  80x80x120	80	120	39.0	198	235--245	As order	92.9
  80x80x90	80	90	52.0	228	175--180	As order	103.0
  80x80x50	80	50	71.0	268	95--100	As order	78.0
  100x100x100	100	100	36.8	154	195--205	As order	77.2
  120x120x80	120	80	39.0	132	155--165	As order	65.8
  150x150x60	150	60	41.7	109	115--124	As order	50.0
  165x165x35	165	35	60.0	119	70--75	As order	48.0
  165x165x45	165	45	50.1	109	88--93	As order	45.1
  165x165x50	165	50	45.6	104	97--105	As order	45.6
  180x180x45	180	45	46.4	96	88--93	As order	41.5
  180x180x50	180	50	42.0	91	98--104	As order	41.7
  200x200x40	200	40	46.9	87	82--84	As order	43.0
  200x200x50	200	50	37.0	77	98--103	As order	42.0
  230x230x35	230	35	46.7	75	72--76	50-67	37.0
  250x250x40	250	40	36.8	62	82--86	50-80	34.0
  250x250x30	250	30	49.7	72	64--68	40-58	30.0
  250x250x35	250	35	43.0	67	76--78	57-70	32.0
  270x270x35	270	35	39.4	59	76--80	58-70	30.0
  300x300x30	300	30	41.7	55	66--68	40-59	28.0
  325x325x30	325	30	38.0	48	66--68	45-60	24.0
  325x325x28	325	28	41.2	50	63--64	40-56	26.4
  325x325x23	325	23	49.8	55	49--53	37-41	25.4
  350x350x25	350	25	43.0	48	52--54	41-50	18.7
  400x400x23	400	23	40.7	41	50--54	35-48	19.0
  400x400x18	400	18	51.3	46	36--40	28-30	20.0
