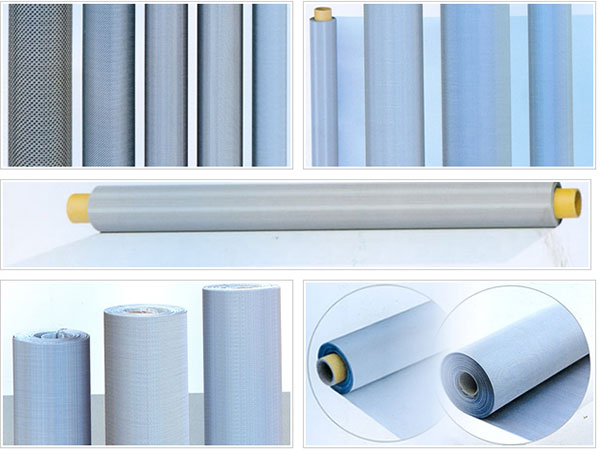

• STAINLESS STEEL WIRE MESH

  TIME:2021-03-19 CLICK:


  Stainless steel plain / stainless steel reverse / stainless steel twill / stainless steel twill

  Application: petroleum, chemical, automotive electronics, aviation, aerospace, food, medicine and other industries.

  Materials: 304, 316, 304L, 316L, 310S, 430, 317L, 904L, Hastelloy, N6, high temperature resistant materials, etc

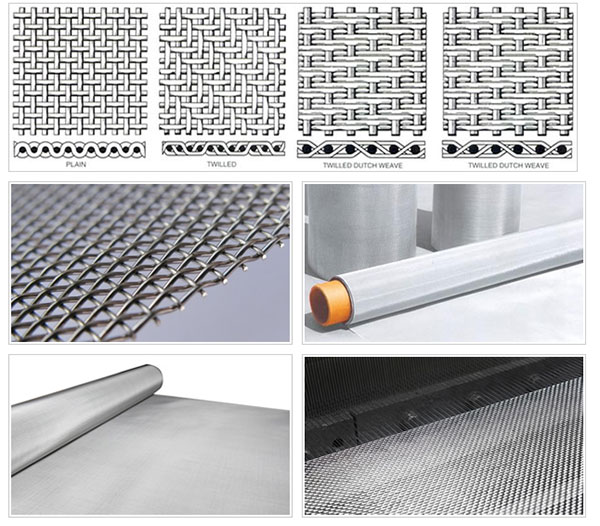

  Weaving mode: plain, twill and dense, among which the dense net includes plain dense, twill dense, double diameter silk dense, reverse plain dense, reverse twill dense and optimized combination net.

  Performance: acid resistance, alkali resistance, high temperature resistance, wear resistance





  Specification：




  Mesh Count per Inch	Wire Diameter mm	Aperture Size mm	Open Area	Weight for Stainless Steel (kg/sq m)
  2	1.8	10.9	74%	3.22
  2	1.6	11.1	76%	2.54
  2	1.4	11.3	79%	1.95
  3	2	6.467	58%	5.96
  3	1.8	6.667	62%	4.83
  3	1.6	6.867	66%	3.82
  3	1.4	7.067	70%	2.92
  4	2	4.35	47%	7.95
  4	1.8	4.55	51%	6.44
  4	1.6	4.75	56%	5.09
  4	1.4	4.95	61%	3.89
  4	1.2	5.1	65%	3.11
  4	1	5.35	71%	1.99
  4	0.9	5.45	74%	1.61
  5	1.2	3.83	57%	3.88
  5	1	4.08	65%	2.48
  6	1.6	2.633	39%	7.63
  6	1.4	2.833	45%	5.84
  6	1.2	3.033	51%	4.29
  6	1	3.233	58%	2.98
  6	0.9	3.333	62%	2.41
  6	0.8	3.433	66%	1.91
  6	0.71	3.523	69%	1.5
  8	1.25	1.925	37%	6.21
  8	1.12	2.055	42%	4.99
  8	1	2.175	47%	3.97
  8	0.9	2.275	51%	3.22

  8	0.8	2.375	56%	2.54
  8	0.71	2.465	60%	2
  8	0.63	2.545	64%	1.58
  8	0.56	2.615	68%	1.25
  10	0.9	1.64	42%	4.02
  10	0.8	1.74	47%	3.18
  10	0.71	1.83	52%	2.5
  10	0.63	1.91	57%	1.97
  10	0.56	1.98	61%	1.56
  10	0.5	2.04	65%	1.24
  12	0.8	1.317	39%	3.82
  12	0.71	1.407	44%	3.01
  12	0.63	1.487	49%	2.37
  12	0.56	1.557	54%	1.87
  12	0.5	1.617	58%	1.49
  12	0.45	1.667	62%	1.21
  14	0.56	1.254	48%	2.18
  14	0.5	1.314	52%	1.74
  14	0.45	1.364	57%	1.41
  14	0.4	1.414	61%	1.11
  14	0.355	1.459	65%	0.88
  14	0.315	1.499	68%	0.69
  16	0.63	0.958	36%	3.15
  16	0.56	1.028	42%	2.49
  16	0.5	1.088	47%	1.99
  16	0.45	1.138	51%	1.61
  16	0.4	1.188	56%	1.27
  16	0.355	1.233	60%	1
  16	0.315	1.273	64%	0.79
  18	0.236	1.175	83%	0.5
  20	0.56	0.71	31%	3.12
  20	0.5	0.77	37%	2.48

  20	0.45	0.82	42%	2.01
  20	0.4	0.87	47%	1.59
  20	0.355	0.915	52%	1.25
  20	0.315	0.955	57%	0.99
  24	0.45	0.608	33%	2.41
  24	0.355	0.703	44%	1.5
  24	0.315	0.743	49%	1.18
  28	0.355	0.552	37%	1.75
  28	0.315	0.592	43%	1.38
  30	0.355	0.492	34%	1.88
  30	0.315	0.532	39%	1.48
  30	0.28	0.567	45%	1.17
  30	0.25	0.597	50%	0.93
  30	0.224	0.623	54%	0.75
  36	0.25	0.456	42%	1.12
  36	0.224	0.482	47%	0.9
  36	0.212	0.494	49%	0.8
  40	0.224	0.411	42%	1
  40	0.212	0.435	47%	0.79
  40	0.19	0.445	49%	0.72
  40	0.132	0.503	79%	0.35
  50	0.21	0.298	34%	1.1
  50	0.2	0.308	37%	0.99
  50	0.19	0.318	39%	0.9
  50	0.16	0.348	47%	0.64
  50	0.15	0.358	50%	0.56
  60	0.18	0.243	33%	0.97
  60	0.16	0.263	39%	0.76
  60	0.14	0.283	45%	0.58
  70	0.15	0.213	34%	0.78
  70	0.14	0.223	38%	0.68
  70	0.125	0.238	43%	0.54

  80	0.14	0.178	31%	0.78
  80	0.125	0.193	37%	0.62
  100	0.112	0.142	31%	0.62
  100	0.1	0.154	37%	0.5
  100	0.09	0.164	42%	0.4
  100	0.08	0.174	47%	0.32
  120	0.09	0.122	33%	0.48
  120	0.08	0.132	39%	0.38
  120	0.065	0.147	48%	0.25
  140	0.08	0.101	31%	0.45
  150	0.071	0.098	34%	0.38
  150	0.065	0.109	42%	0.27
  165	0.05	0.104	46%	0.2
  180	0.06	0.081	33%	0.32
  180	0.05	0.091	42%	0.22
  200	0.05	0.077	37%	0.25
  200	0.04	0.087	47%	0.16
  230	0.036	0.074	45%	0.15
  250	0.04	0.062	37%	0.2
  270	0.04	0.054	33%	0.21
  270	0.036	0.058	38%	0.17
  300*	0.04	0.045	28%	0.24
  300*	0.036	0.055	42%	0.13
  325*	0.036	0.042	29%	0.21
  325	0.028	0.05	41%	0.13
  350*	0.03	0.043	34%	0.16
  400*	0.03	0.034	27%	0.18
  500*	0.025	0.026	26%	0.16

  Mesh	Wire Diameter				Weave
  	Warp		Shute
  	in	mm	in	mm
  12x64	0.023	0.58	0.0165	0.42	Plain
  14x88	0.019	0.48	0.012	0.30	Plain
  14x110	0.016	0.40	0.011	0.28	Plain
  24x110	0.014	0.355	0.010	0.25	Plain
  16X200	0.014	0.355	0.010	0.25	Twill
  30X150	0.009	0.23	0.007	0.18	Plain
  20X200	0.0135	0.34	0.011	0.28	Twill
  40X200	0.007	0.18	0.0055	0.14	Plain
  20X300	0.010	0.25	0.007	0.18	Twill
  30X250	0.010	0.25	0.008	0.20	Twill
  20X350	0.010	0.25	0.006	0.15	Twill
  20X250	0.010	0.25	0.0082	0.21	Twill
  50X600	0.007	0.18	0.0035	0.09	Twill
  28X400	0.007	0.18	0.005	0.13	Twill
  50X250	0.0055	0.14	0.0045	0.11	Plain
  28X500	0.007	0.18	0.0045	0.11	Twill

  50X700	0.0055	0.14	0.003	0.076	Twill
  80X700	0.004	0.10	0.003	0.076	Twill
  100X1000	0.004	0.10	0.002	0.051	Twill
  165X800	0.0028	0.071	0.002	0.05	Twill
  165X1400	0.0028	0.071	0.0016	0.04	Twill
  200X1400	0.0028	0.071	0.0016	0.04	Twill
  325X2300	0.0014	0.035	0.001	0.025	Twill
