• HORIZONTAL VACUUM FILTER BELT

  TIME:2021-03-19 CLICK:


  Filter Conveyor Belts /Filter Press Cloth/Horizontal Vacuum Filter Belt / Synthethic Bolting Cloth In Dewatering Processes

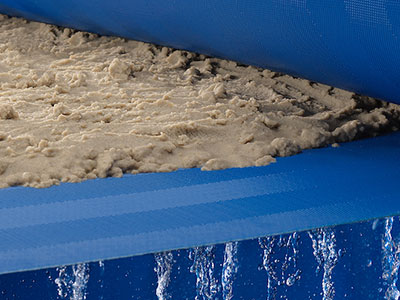

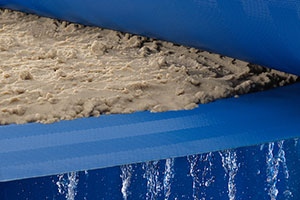

  We will solve your filter or dewatering conveyor belting challenges across applications including municipal sewerage treatment, dewatering manufactured parts and cleaning water from food, Fruit  Concentration and vegetable wastes. Filter or dewatering belts have decreasing mesh size down to 20 micron. Extremely robust and mechanically stable belts guarantee resistance to abrasion and chemical attack on all machine types and models.

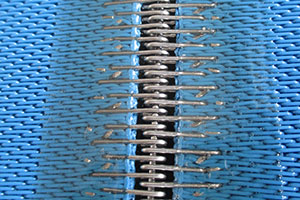

  Most filter belts are heat treated polyester; some are Polyamide, polypropylene or PPS. Filter belts are used to remove or reduce the number of impurities in a fluid supply. Filtration products and equipment have two basic components, the filter and the media. The filter itself is the frame or housing that holds the media in place as a process stream is run through them. The media or material is responsible for the entrapment, collection or dissolution of impurities. The Joint seam of Horizontal Vacuum Filter Belt can be endless Inserting Joint, pin seam , Spiral loop Joint and 316 L stainless steel clipper.



  Benefits

  · Application-optimized air permeability

  · High degree of lateral stability and high mechanical strength

  · Optimum throughput performance

  · Optimized for easy cleaning

  Applications

  · Sewerage Sludge

  · Fruit Concentration

  · Vegetable Washing

  · Oils

  · Sands & Soils

  · Mining Filtration




  Specifications:

  Model 型号	Wire Diam Warp/Weft丝经 [mm]	Wires Per      [10cm ]     密度    Warp/Weft	Air Permeability @200Pa    L/M2*S	Weaving  Type       编织方式	Tensile    Strengt     强度   (N/CM)	Weight    重量   (g/m2)	Seam Type接口形式	Thickness       厚度    (mm)
  14803	0.70/0.80	142/60	2400-2600	Twill 2/1	2352	1400	Metal Clipper	2.02
  16803	0.70/0.80	156/50	2800	Twill 2/1	2597	1400	Metal Clipper	2.05
  16903	0.70/0.90	156/52	2400-2600	Twill 2/1	2800	1500	Metal Clipper	2.18
  16903 Blue	0.90/0.90	156/58-60	2000-2400	Twill 2/1	2800	1550	Metal Clipper	2.18
  24908	0.50/0.90	248/72	2300-2600	Satin 2/6	2450	1500	Metal Clipper	2.20
  26908	0.50/0.90	264/69-72	2300-2600	Satin 2/6	2450	1500	Metal Clipper	2.20
  27708	0.50/0.70	280/85	2000-2300	Satin 2/6	2350	1530	Metal Clipper	2.00
  121104	0.90/1.10 PA66	125/39	3700+-300	Twill 2/2	3000	1800	Metal Clipper	3.00
  22903	0.50/0.90	220/54	3600+-300	Twill 2/1	2400	1200	Metal Clipper	1.90
  15905	0.90/0.90	153/50	3700+-300	Twill 3/2	2800	2000	Metal Clipper	1.45
  31505	0.40/0.50	33/92	2100+-300	Twill 4/1	2200	870	Metal Clipper	1.35
  31506	0.35/0.50	38/10.3	1850+-300	Twill 5/1	2350	905	Metal Clipper	1.32
  151105	0.90/1.10	153/40	2600-3000	Twill 3/2	2850	2100	Metal Clipper	2.85
  151105	0.90PA/1.10PET	153/40	2600-3000	Twill 3/2	2850	2100	Metal Clipper	2.85
  12904	0.90/0.90	123/95	2800+-300	Twill 2/2	2750	2200	Metal Clipper	2.50
